DOX 2025B

  • USB
Description

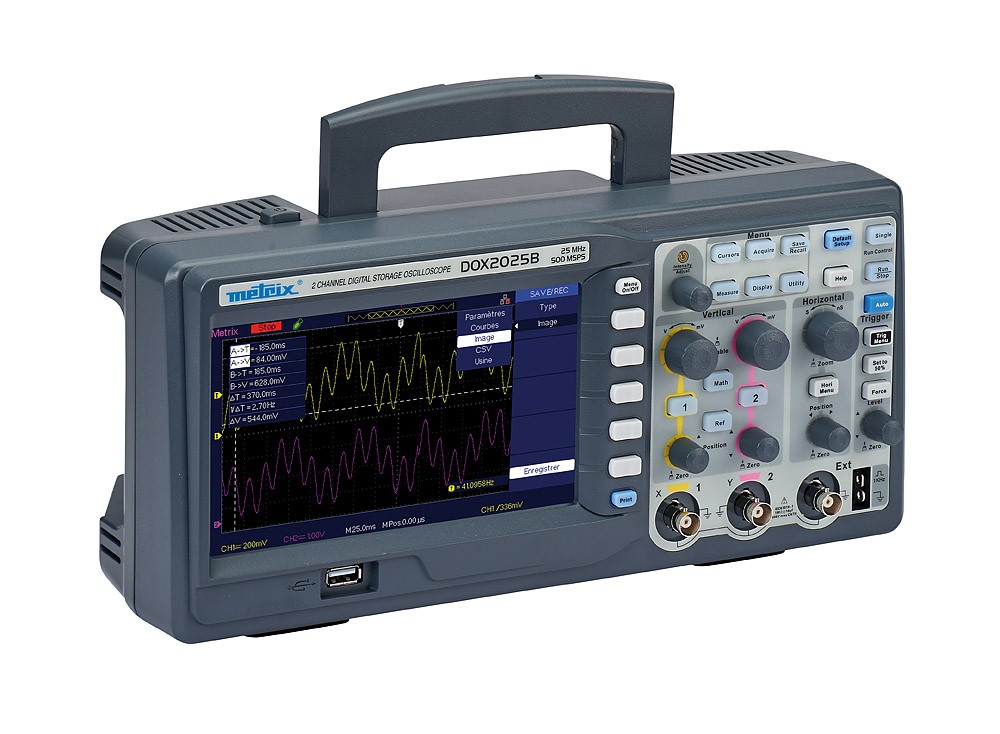

The METRIX DOX2000B Series oscilloscopes are particularly compact andsimple to use, with a casing specially designed for laboratory use.

Theyare equipped with a wide display offering 16 div. in full-screen mode. Thisallows customization of the display: choice between normal or persistentdisplay, YT or XY format, adjustment of the colours, graticule, brightness,contrast, etc. Rotary buttons and backlitkeys give access to the commands on the front panel.

Withits handle, the DOX oscilloscope is easy to transport and its non-slip feetmake it particularly stable.

High performance and multiple functions for acquisition andanalysis

There are 3 acquisition levels for acquisition and analysis, in real time orequivalent time. The memory depth for acquisition is 32 kpoints, with an illimited storage on USB key to optimize your analyses. The vertical sensitivity is from 2 mV/div. to10 V/div. with 12 ranges and the horizontal sensitivity is from 5 ns to 50s/div. Advanced functions arealso available: simple MATH functions (+/-/x/÷) and "real-time"FFT with simultaneous display of the traces.
Pratical : the Pass/Fail test using a limit envelope.

TheEASYSCOPE software delivered withthe product can be used to control and test the oscilloscope and to recover thetrace and screenshot files.

Technical specifications:

- 7-inch WGA colour display, resolution 800 X 480
- Fullmenus in 5 languages + on-screen contextual help in French/English
- 2-channelmeasurement capture + Ext Trig andcomplex triggers
- Vertical resolution: 8 bits
- 32 automatic measurements
- Cursors : Manual, tracking and automatic modes
- USB host and device communication
- IEC 61010-1 / 300 V CAT II

2 x25 MHz channels – Sweep speed from 25 ns/div. to 50 s/div.
Sampling rate: one-shot= 250 MS/s (2 channels), 500 MS/s (one channel) / Repetitive = 10 GS/s
Max. memory depth: 32 kpoints + USB Key

Designation
Price
Reference
Quantity
Actions
DOX2025B oscilloscope num 2voies 25MHz
Accessories
-
DOX2025B
-
