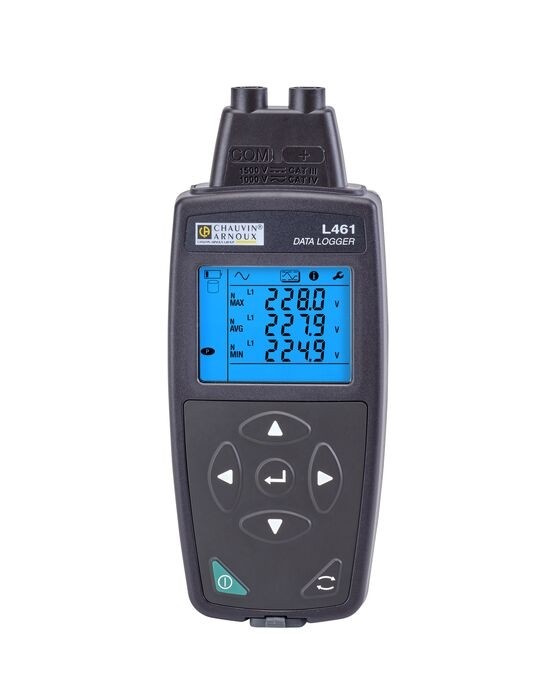

LOGGER L461

L461
  • 1000vcat3
  • 600vcat4
  • IP54
  • TRMS
  • WIFI
  • USB
Highlights

• Two-channel voltage measurement data loggers
• Its 1500 V DC rating means it can be used on photovoltaic panel installations.
• Easy to use, up and running in just a few minutes
• Equipment available with remote access via Internet
• Software included for analysis and reporting of recorded data

Description

Recording can also provide evidence of an outage or variation that has caused a malfunction.

These L461 current loggers operate over very long periods if required, and are very simple to set up. They can be used on photovoltaic panel installations up to 1500 V DC. The devices can communicate via their USB port, but can also be networked via their WiFi mode. The Data Logger Transfer software is used to configure the devices and evaluate all the measurements.

• 1 measurement channel
• Measures from 10 V to 1200 V AC and 10 V to 1700 V DC
• Backlit LCD display
• 8 GB memory size
• Acquisition speed of 1 measurement / s
• Aggregation from 1 to 60 min
• Communication via USB, Wifi, Web server and IRD server DataView Synch
• Powered by 3 AA batteries or USB
• Battery life is 3 days recording without Wi-Fi
• Optional shock-proof casing
• Dimensions 178 x 34 x 72 mm
• 1.2 m current sensor lead
• Operating temperature from -20°C to 50°C
• Protection class IP54
• Electrical safety IEC 61010 600 V CAT IV / 1000 V CAT III / 1500 V DC CAT III

Designation
Price
Reference
Quantity
Actions
LOGGER L461 TENSION COURANT
