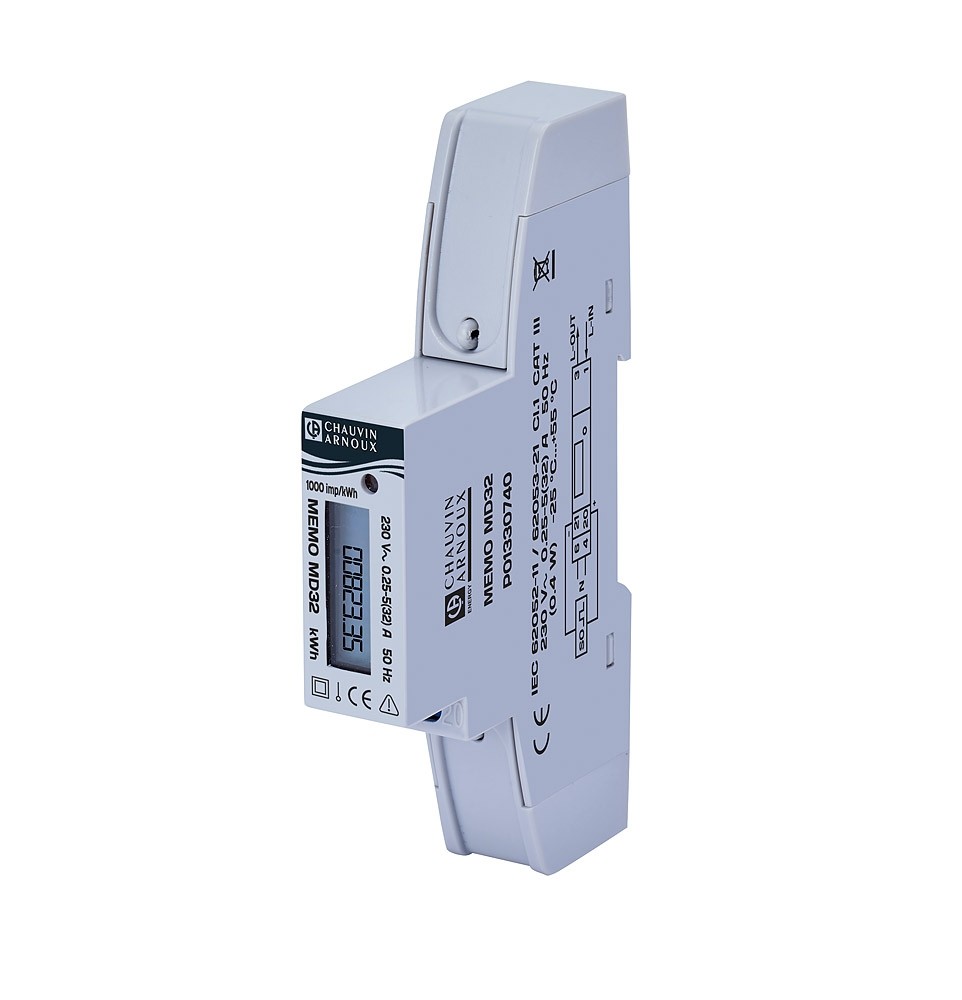

MEMO MD32 is one of our economical solutions for measuring active energy consumption on a single-phase 230 Vac network.
Its compact dimensions (1 DIN module) make it easy to install in an electrical control box.
Main specifications:
- Direct connection without parameter settings
- Width: 1 module
- Rated current:
5(32) A
- Maximum permanent current: 45 A
- Inrush current: 0.02A
- LCD screen: 0 to 99999.88 kWh
- Metrological LED: 1,000 flashes / kWh
- Consumption < 0.4W / <8 VA
- Pulse output: 1,000 pulses / kWh
