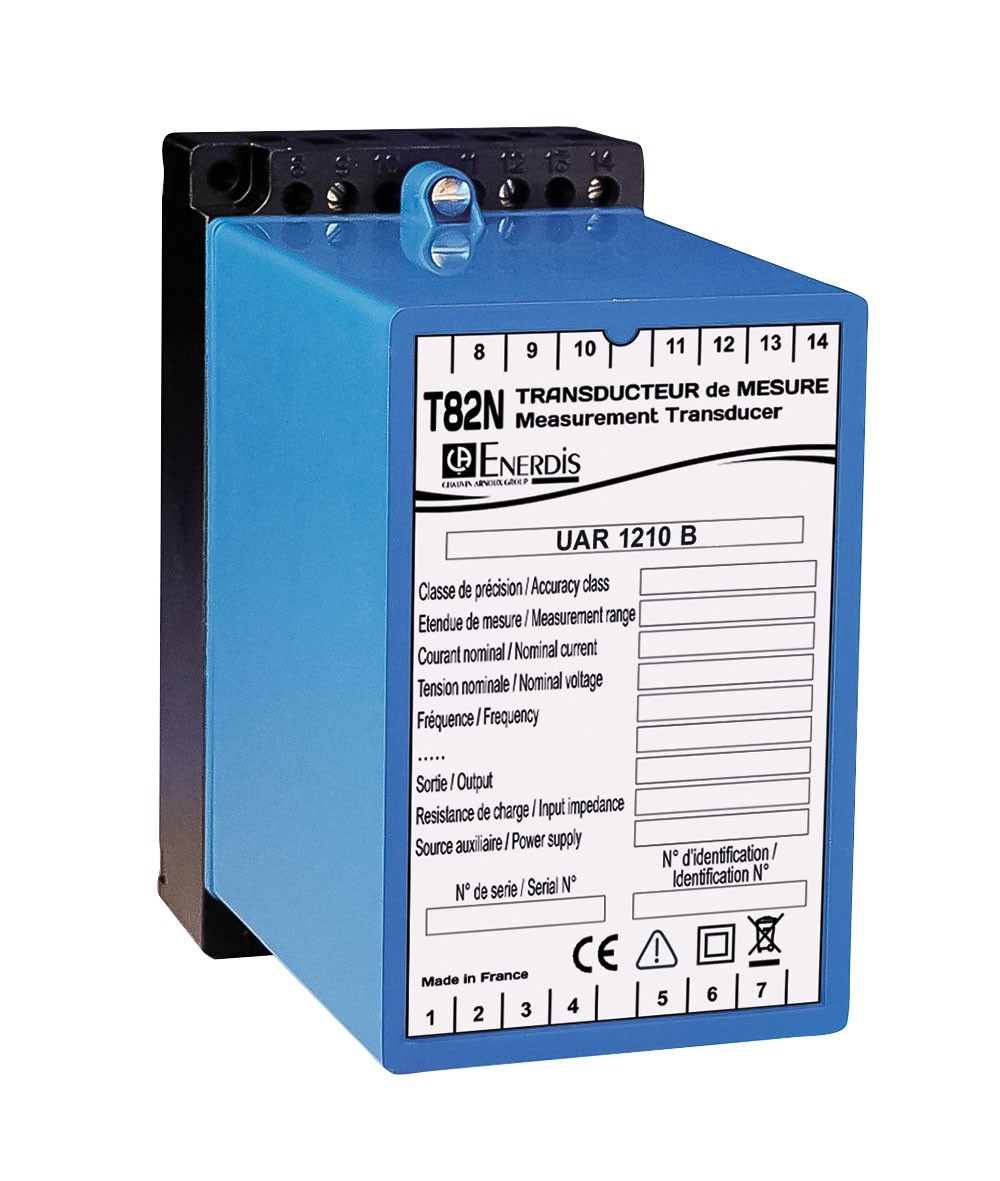

T82N UAR1210B

Highlights

Product for severe environments such as the nuclear sector

Description

New T82N analog measurement transducer for RMS AC voltage compliant with the requirements of the latest product standards

Model: UAR 1210B

  • Type of measurement: RMS AC voltage
  • Transfer curves: linear
  • Rated voltage Un: direct from 100/√3 to 380Vac 50/60Hz
  • Measurement range: 0...1,25 Un
  • Auxiliary source: 100/√3 to 440Vac 50/60Hz and 24 to 125Vdc
  • Current output: 0 to 20mA
  • Voltage output: 0 to 10V
  • Accuracy class: 0.5%
  • Response time: 120 ms
  • Insulation: 2 kV
  • Ingress protection: IP20
  • Operating temperature: -10°C to +60°C
  • Type of mounting: plate-mounted or on socket

  • Reference standard: EN 60688 of April 2013

    Totally configurable when ordering

     Related products:

  • Socket for screw-on front connector, reference: EMBB4005
  • Symmetrical DIN rail adapter, reference: PDINSYME
  • Asymmetrical DIN rail adapter, reference: PDINASYM
