TCG11

Highlights
  • Class 1
  • IEC 584-1
  • Miniature connector
  • 900°C max
Description

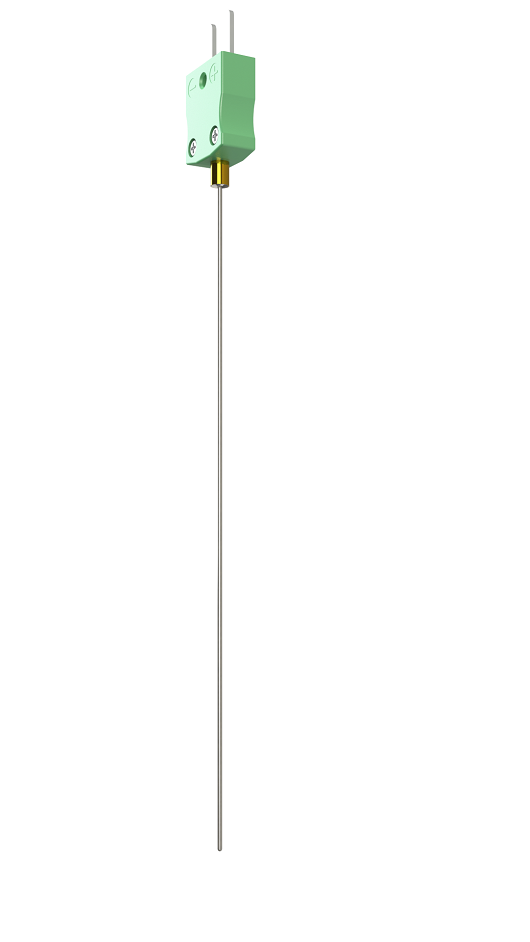

TCG11 Thermocouple
Bendable flexible sheathed thermocouple for adaptation to the
application, even in confined spaces. Small-diameter sensor
with a short response time. Output equipped with a miniature
plug-in male connector with compensated contacts for quick
connection. As an option, the extension with the corresponding
female plug can be supplied with a PVC cable for a withstand
of 105°C.

Thermocouple type :

K/J/T/N

Material :

Inconel 600 / 316L / 316L (simple) 304L (Duplex) / Pyrosil

Class :

1 / 2

Standards :

IEC 584-1 / EN 61515

Thermocouple :

Simple / Duplex

Length L Min/ Max :

100 to 36000 mm

Output :

Miniature plug-in male connector with compensated contacts, via PVC extension cable with 105 °C max. withstand

Configure your sensor

Ask for a quote

Designation
Price
Reference
Quantity
Actions
TCG11 J2 304L 1 250
-
L221122-009
-
TCG11 J2 304L 1 500
-
L221122-014
-
TCG11 J2 304L 1 1000
-
L221122-024
-
TCG11 J2 304L 1 2000
-
L221122-034
-
TCG11 J2 304L 1 3000
-
L221122-038
-
TCG11 J2 304L 1,5 250
-
L221123-009
-
TCG11 J2 304L 1,5 500
-
L221123-014
-
TCG11 J2 304L 1,5 1000
-
L221123-024
-
TCG11 J2 304L 1,5 2000
-
L221123-034
-
TCG11 J2 304L 1,5 3000
-
L221123-038
-
TCG11 J2 304L 2 250
-
L221124-009
-
TCG11 J2 304L 2 500
-
L221124-014
-
TCG11 J2 304L 2 1000
-
L221124-024
-
TCG11 J2 304L 2 2000
-
L221124-034
-
TCG11 J2 304L 2 3000
-
L221124-038
-
Thermocouple K connec min gaine inc600 Ø1,0 Lg=250
-
L221152-009
-
Thermocouple K connec min gaine inc600 Ø1,0 Lg=500
-
L221152-014
-
TCG11 K1 INC600 1 600
-
L221152-016
-
TCG11 K1 INC600 1 800
-
L221152-020
-
Thermocouple K connec min gaine inc600 Ø1,0 Lg=1000
-
L221152-024
-
Thermocouple K connec min gaine inc600 Ø1,0 Lg=2000
-
L221152-034
-
Thermocouple K connec min gaine inc600 Ø1,0 Lg=3000
-
L221152-038
-
Thermocouple K connec min
-
L221153-009
-
Thermocouple K connec min gaine inc600 Ø1,5 Lg=500
-
L221153-014
-
TCG11 K1 INC600 1,5 600
-
L221153-016
-
Thermocouple K connec min gaine inc600 Ø1,5 Lg=1000
-
L221153-024
-
Thermocouple K connec min gaine inc600 Ø1,5 Lg=2000
-
L221153-034
-
Thermocouple K connec min gaine inc600 Ø1,5 Lg=3000
-
L221153-038
-
Thermocouple K connec min gaine inc600 Ø2,0 Lg=250
-
L221154-009
-
Thermocouple K connec min gaine inc600 Ø2,0 Lg=500
-
L221154-014
-
TCG11 K1 INC600 2 800
-
L221154-020
-
Thermocouple K connec min gaine inc600 Ø2,0 Lg=1000
-
L221154-024
-
Thermocouple K connec min gaine inc600 Ø2,0 Lg=2000
-
L221154-034
-
Thermocouple K connec min gaine inc600 Ø2,0 Lg=3000
-
L221154-038
-
TCG11 K1 INC600 3 400
-
L221155-012
-
TCG11 K1 INC600 3 800
-
L221155-020
-
TCG11 K1 INC600 3 1500
-
L221155-029
-
SM PT100-200 6,0 1X4 500 SM PT100-200 6,0 1X4 500
-
L301160-500
-
L301130-500 L301130-500
-
L301130-500
-
SM PT100-200 6,0 1X4 1500 SM PT100-200 6,0 1X4 1500
-
L301160-1500
-
SM PT100-200 4,5 1X3 500 SM PT100-200 4,5 1X3 500
-
L301145-500
-
SM PT100-200 3 1X3 1500 SM PT100-200 3 1X3 1500
-
L301130-1500
-
SM PT100-200 3 1X3 1000 SM PT100-200 3 1X3 1000
-
L301130-1000
-
SM PT100-200 6,0 1X4 1000 SM PT100-200 6,0 1X4 1000
-
L301160-1000
-
SM PT100-200 4,5 1X3 100O SM PT100-200 4,5 1X3 100O
-
L301145-1000
-
SM PT100-200 4,5 1X3 1500 SM PT100-200 4,5 1X3 1500
-
L301145-1500
-
