  • THYRITOP 600 TWO PHASESPOWER CONTROLLER

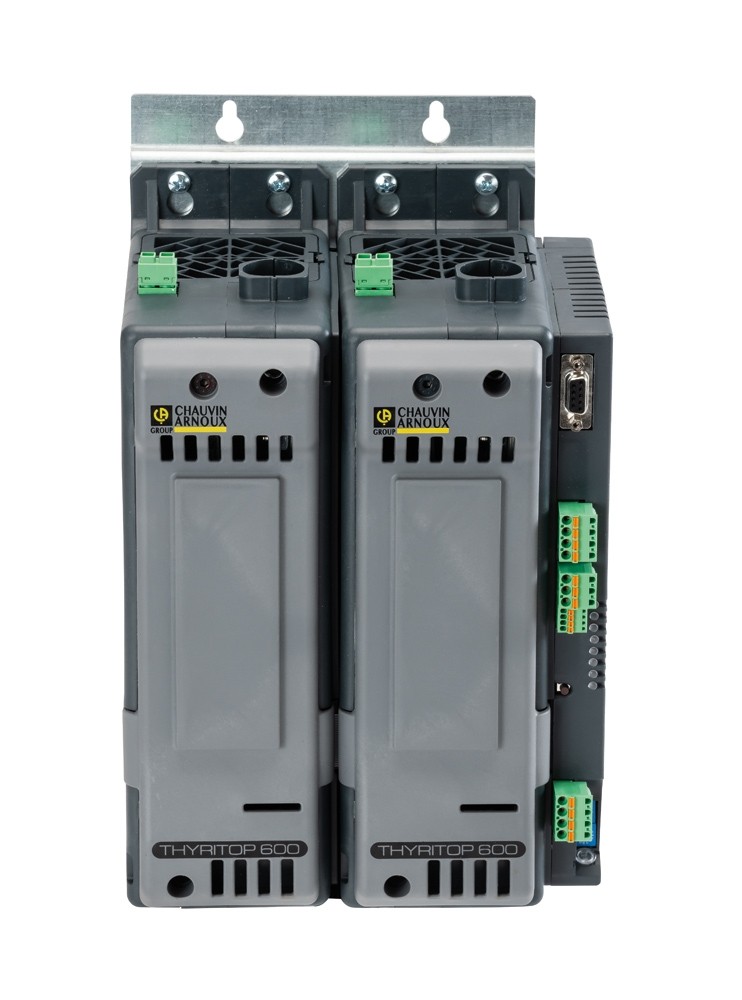

THYRITOP 600 TWO PHASESPOWER CONTROLLER

THYRITOP 600 TWO PHASESPOWER CONTROLLER
Highlights
  • Suitable for all types of industrial heating systems, whatever the application.
  • Configurable control input: 0-10 V – 0/4-20 mA
  • Built-in PID temperature controller
  • Conduction: BURST firing, half single-cycle, phase angle
  • Power control: UxI, U², I², U, I, Uext, Iext
Description

THYRITOP 600 range of split-phase power controllers

The accurate, modular THYRITOP 600 range of power controllers can be used to manage the electrical power of all types of industrial heating elements and offers extensive modularity for all split-phase applications (three-phase with 2-phase control). The THYRITOP 600 models have an exclusive function for measuring the temperature on the power terminals to avoid any risk of cable overheating. They are also equipped with an additional function for measuring the temperature at the fan outlet. This helps keep your installations safe.

  • Low thermal coefficient
    • Nickel-chrome resistor
    • Medium and long-wave infrared lamps
  • High thermal coefficient
    • Kanthal™ and Super Kanthal™ (MiSo2) heating resistors
    • Short-wave infrared lamps
  • Inductive loads
    • Transformers
    • Inductors

2 models are available

  • 40 A – 60 A – 100 A – 150 A – 200 A – 250 A – 300 A split-phase power controllers
  • 400 A – 500 A – 600 A split-phase power controllers

Main specifications

  • Control: I - I² - V - V² - P
  • Current ranges: 40 A – 60 A – 100 A – 150 A – 200 A – 250 A – 300 A – 400 A – 500 A – 600 A
  • Rated voltage ranges: 480 Vac – 690 Vac
  • Configurable command input: 0-10 V – 0/4-20 mA
  • Activation: BURST firing – Half single-cycle with zero voltage switching – Phase angle
  • Indication: Diagnostic LED, relay

Compliant with the CE/UL directives

Advanced customization and parameterization with the FREE PYROTOOLS software. A simple, clever tool for:

  • Configuration of the parameters
  • Display of the data and analysis of the parameters (measured values, setpoints, alarms)
  • Data recording and archiving

The cable for connecting the PC to the THYRITOP 600 (for configuration) is sold separately.
Order with the code P01665999

Direct viewing with THYRITOP REMOTE, a simple unit for immediate reading of the main current and voltage parameters without installing extra software. With connection via a 9-pole D-SUB 9 connector, it can be installed directly on the THYRITOP 600 front panel using a magnetic plate.
Order with the code P01666600

Available options

  • Load break alarm, total or partial
  • Current limitation
  • Control of V, I, P
  • Fieldbuses
  • External U(V) and I(A) measurements
  • Pocket Thyritop for viewing the parameters and measured values
  • Complementary logical, relay and analogue I/Os
  • PYRO-LM: PYRO LOAD MANAGEMENT MODULE for optimizing and limiting the network load

Main sectors of application

  • Industrial furnaces for thermal treatments and metallurgy
  • Melting, sintering and nitriding furnaces
  • Furnaces for ceramics and precious metals
  • Industrial dryers
  • Heating systems with single and three-phase transformers
  • Autoclaves for composite materials
  • Furnaces equipped with Super Kanthal™, silicon carbide heating elements
Designation
Price
Reference
Quantity
Actions
TH600 Biph 40A 480V
-
P01666200
-
Quotation
TH600 Biph 40A 480V HB
-
P01666201
-
Quotation
TH600-2P40480-002011M
-
P01666202
-
Quotation
TH600 Biph 60A 480V
-
P01666213
-
Quotation
TH600 Biph 60A 480V HB
-
P01666214
-
Quotation
TH600-2P60480-002011M
-
P01666215
-
Quotation
TH600 Biph 100A 480V
-
P01666226
-
Quotation
TH600 Biph 100A 480V HB
-
P01666227
-
Quotation
TH600 Biph 100A 480V HB + VIP
-
P01666228
-
Quotation
TH600 Biph 150A 480V
-
P01666239
-
Quotation
TH600 Biph 150A 480V HB
-
P01666240
-
Quotation
TH600-2P150480-002011M
-
P01666241
-
Quotation
TH600 Biph 200A 480V
-
P01666252
-
Quotation
TH600 Biph 200A 480V HB
-
P01666253
-
Quotation
TH600-2P200480-002011M
-
P01666254
-
Quotation
TH600 Biph 250A 480V
-
P01666265
-
Quotation
TH600 Biph 250A 480V HB
-
P01666266
-
Quotation
TH600-2P250480-002011M
-
P01666267
-
Quotation
TH600 Biph 300A 480V
-
P01666278
-
Quotation
TH600 Biph 300A 480V HB
-
P01666279
-
Quotation
TH600-2P300480-002011M
-
P01666280
-
Quotation
TH600 Biph 400A 690V
-
P01666291
-
Quotation
TH600 Biph 400A 690V HB
-
P01666292
-
Quotation
TH600 Biph 400A 690V HB + VIP
-
P01666293
-
Quotation
TH600 Biph 500A 690V
-
P01666304
-
Quotation
TH600 Biph 500A 690V HB
-
P01666305
-
Quotation
TH600 Biph 500A 690V HB + VIP
-
P01666306
-
Quotation
TH600 Biph 600A 690V
-
P01666317
-
Quotation
TH600 Biph 600A 690V HB
-
P01666318
-
Quotation
TH600 Biph 600A 690V HB + VIP
-
P01666319
-
Quotation
