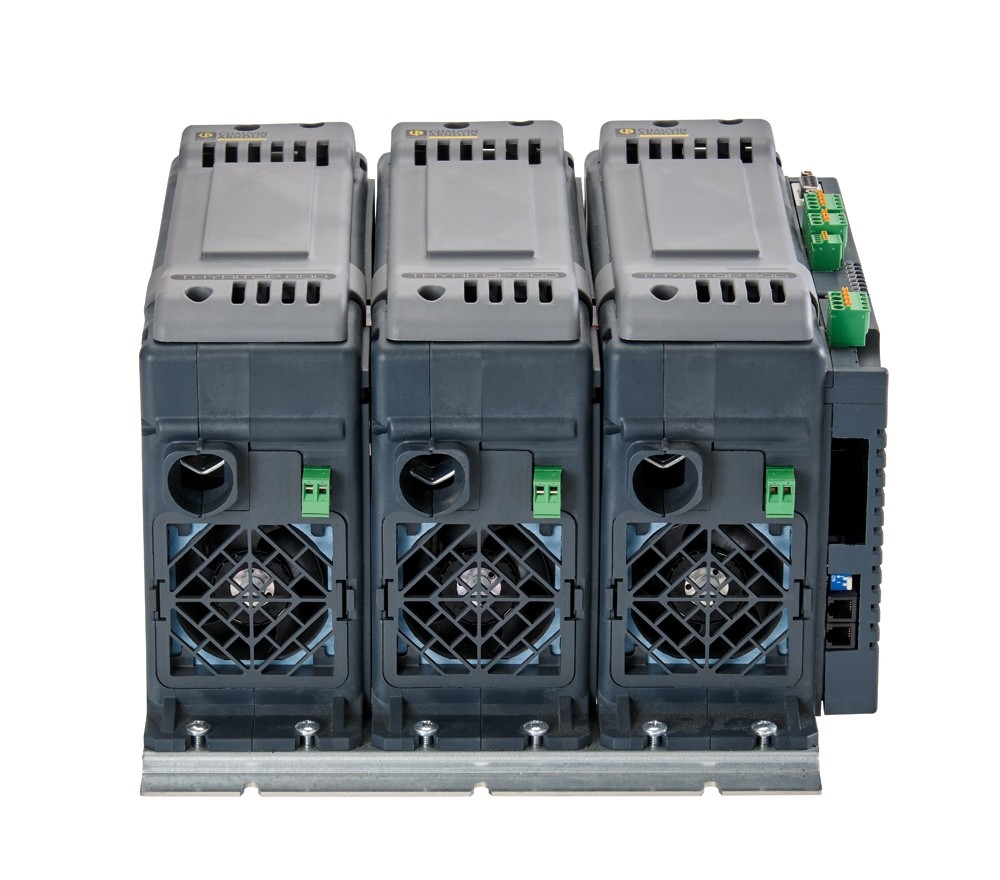

THYRITOP 600 TREE-PHASE POWER CONTROLLER

Highlights
  • Suitable for all types of industrial heating systems, whatever the application.
  • Configurable control input: 0-10 V – 0/4-20 mA
  • Built-in PID temperature controller
  • Conduction: BURST firing, half single-cycle, phase angle
  • Power control: UxI, U², I², U, I, Uext, Iext
Description

THYRITOP 600 range of three-phase power controllers

The accurate, modular THYRITOP 600 range of power controllers can be used to manage the electrical power of any type of industrial heating element, offering extensive modularity for all three-phase applications. The THYRITOP 600 models offer an exclusive temperature measurement function on the power terminals to prevent any risk of cable overheating. They are also equipped with an additional function for measuring the air temperature at the fan outlet. This keeps your installations safe.

  • Low thermal coefficient
    • Nickel-chrome resistor
    • Medium and long-wave infrared lamps
  • High thermal coefficient
    • Kanthal™ and Super Kanthal™ (MiSo2) heating resistors
    • Short-wave infrared lamps
  • Inductive loads
    • Transformers
    • Inductors

2 models are available

  • 40 A – 60 A – 100 A – 150 A – 200 A – 250 A – 300 A three-phase power controllers
  • 400 A – 500 A – 600 A three-phase power controllers

Main specifications

  • Control: I - I² - V - V² - P
  • Current ranges: 40 A – 60 A – 100 A – 150 A – 200 A – 250 A – 300 A – 400 A – 500 A – 600 A
  • Rated voltage ranges: 480 Vac – 690 Vac
  • Configurable control input: 0-10 V – 0/4-20 mA
  • Activation: BURST firing – Half single-cycle mode with zero voltage switching – Phase angle
  • Indication: Diagnostic LED, relay
  • Compliant with the CE/UL directives

Advanced customization and parameterization with the FREE PYROTOOLS software. Un outil simple et astucieux pour :

  • Configuration of the parameters
  • Data display and analysis of the parameters (measured values, setpoints, alarms, etc.
  • Data recording and archiving

The cable for connecting the PC to the THYRITOP 600 (for configuration) is sold separately.
Order with the code P01665999

Direct display with THYRITOP REMOTE, a simple unit for immediate reading of the main current and voltage parameters without installing extra software. Connected via a 9-pole D-SUB 9 , it is installed directly on the THYRITOP 600's front panel by means of a magnetic plate.
Order with the code P01666600

Available options

  • Load break alarm, total or partial
  • Current limitation
  • V, I, P control
  • Fieldbuses
  • External U(V) and I(A) measurements
  • Pocket Thyritop for viewing the parameters and measured values
  • Complementary logical, relay and analogue I/Os
  • PYRO-LM: PYRO LOAD MANAGEMENT MODULE for optimizing and limiting the network load

Main sectors of application

  • Industrial furnaces for thermal treatments and metallurgy
  • Melting, sintering and nitriding furnaces
  • Furnaces for ceramics and precious metals
  • Industrial dryers
  • Heating systems with single and three-phase transformers
  • Autoclaves for composite materials
  • Furnaces equipped with Super Kanthal™, silicon carbide heating elements
Designation
Price
Reference
Quantity
Actions
TH600 TRI 40A 480V
-
P01666400
-
TH600 TRI 40A 480V HB
-
P01666401
-
TH600 TRI 40A 480V HB + VIP
-
P01666402
-
TH600 TRI 60A 480V
-
P01666413
-
TH600 TRI 60A 480V HB
-
P01666414
-
TH600 TRI 60A 480V HB + VIP
-
P01666415
-
TH600 TRI 100A 480V
-
P01666426
-
TH600 TRI 100A 480V HB
-
P01666427
-
TH600 TRI 100A 480V HB + VIP
-
P01666428
-
TH600 TRI 150A 480V
-
P01666439
-
TH600 TRI 150A 480V HB
-
P01666440
-
TH600-3P150480-002011M
-
P01666441
-
TH600 TRI 200A 480V
-
P01666452
-
TH600 TRI 200A 480V HB
-
P01666453
-
TH600 TRI 200A 480V HB + VIP
-
P01666454
-
TH600 TRI 250A 480V
-
P01666465
-
TH600 TRI 250A 480V HB
-
P01666466
-
TH600 TRI 250A 480V HB + VIP
-
P01666467
-
TH600 TRI 300A 480V
-
P01666478
-
TH600 TRI 300A 480V HB
-
P01666479
-
TH600 TRI 300A 480V HB + VIP
-
P01666480
-
TH600 TRI 400A 690V
-
P01666491
-
TH600 TRI 400A 690V HB
-
P01666492
-
TH600 TRI 400A 690V HB + VIP
-
P01666493
-
TH600 TRI 500A 690V
-
P01666504
-
TH600 TRI 500A 690V HB
-
P01666505
-
TH600 TRI 500A 690V HB + VIP
-
P01666506
-
TH600 TRI 600A 690V
-
P01666517
-
TH600 TRI 600A 690V HB
-
P01666518
-
TH600 TRI 600A 690V HB + VIP
-
P01666519
-
